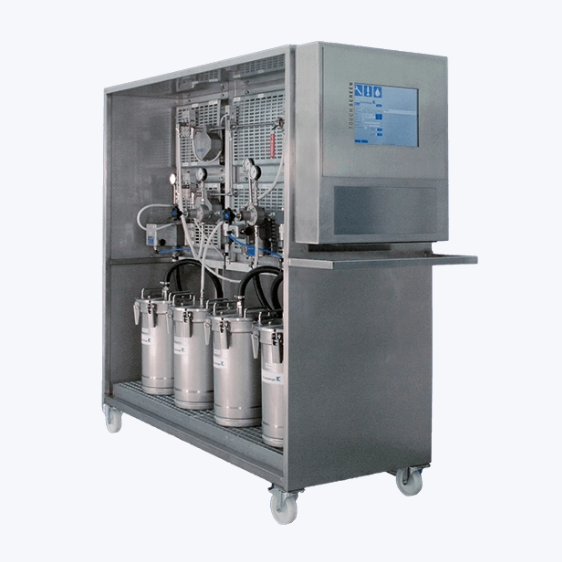

2K CHARVO Adhesive Batching System
Designed for Batching measured quantities of mixed ratio 2 Component mix adhesives.
The system is of a user friendly operation with a Readout and Keypad Controller, flow and no flow monitoring, automatic flow correction and recording data of time, date and batch log.
The system is designed for direct feeding to Automatic Robot guns or alternatively batch directly into a container/or pressure feed containers.
The system offers the following:-
Optional facility to print a ticket after each batch or alarm
condition, batched quantity with time and date stamp.
The pre-programmed batch can be programmed directly by the
operator, repeating batch quantities are executed by press the
start command.
The flow rate is registered and computed and can be read directly
from the control display.
The total quantity batched and the number of batches are
recorded. Even under power failure conditions, the actual
process information is still retained in a memory. This
allows the process to résumé from where it was interrupted,
Password Protection
All settings, valves and actions can be protected with a password
selected by the customer, the level of protection can be set.
No Flow Monitor
Following the start command the flow meters generate a signal, if
this signal fails to come within the programmed time, an alarm is
triggered.
The batch is interrupted and the latest process values are stored
in the memory.
The cause of the Alarm is displayed on the LED screen; the alarm
can be signalled to operate Audibly or Visually.
The No Flow Function detects the absence of materials ie either
hardener or adhesive, through lack of material or a possible
blockage.
Communication
All information stored can be sent to an optional printer, standard
ASCII format through a RS485 connection.
